Liquid to Liquid Heat Exchangers

For Industrial, Commercial and Residential Applications.

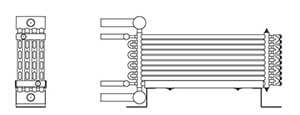

The Hydronic Series is a liquid-to-liquid heat exchanger designed for highly efficient heat transfer covering a wide variety of liquid types. The heavy duty design makes it ideal for demanding commercial, industrial and residential applications where high performance and low maintenance are important.

Heat transfer coefficients are greater than conventional shell and tube or plate exchangers because of the enhanced heat exchange surface and counter-flow design. Unlike plate heat exchangers, the Hydronic Series is not sensitive to debris clogging because of its large fluid circuits and is mechanically cleanable on the tube side circuit.

Vented Double-Wall for Safety

The Hydronic Series heat exchangers are available with vented double-wall copper construction for an added measure of safety and reliability. The double-wall design prevents contamination of the potable water from the other non-potable liquid circuit. Each tube is manufactured so that a vent path is created between the outer and inner tube. A failure in either tube wall will vent to the atmosphere, preventing cross-contamination of either fluid circuit. This fail-safe design meets all national, state, local and provincial health and plumbing codes requiring double separation and cross connection safety requirements.

Hydronic Series Liquid to Liquid heat exchangers are available in both single and double-wall design. Contact the factory for further information.

Need Help Deciding What You Need?

We would be happy to have a conversation with you about what fits your specific needs.

Start a Conversation Now

Or call John at 800.445.7511

    Liquid to Liquid Heat Exchangers -
    Click Item Number to View Full Product Sheets
    Item # Application Heat Transfer Length Width Height Hot Conn. Cold Conn. Weight List Price
      CTD 4M2
      Non-potable 100,000 Btuh 40 " 6 " 19 " 1 1/8 " 1 3/8 " 48 lbs $2,500.00
        CTD 6M2
        Non-potable 150,000 Btuh 40 " 9 " 19 " 1 3/8 " 1 5/8 " 72 lbs $3,270.00
          CTD 8M2
          Non-potable 200,000 Btuh 40 " 12 " 19 " 1 5/8 " 1 5/8 " 96 lbs $4,645.00
            CTD 10M2
            Non-potable 250,000 Btuh 42 " 15 " 19 " 1 5/8 " 2 1/8 " 120 lbs $5,185.00
              CTD 12M2
              Non-potable 300,000 Btuh 42 " 18 " 19 " 1 5/8 " 2 1/8 " 144 lbs $6,350.00
                CTD 16M2
                Non-potable 400,000 Btuh 42 " 24 " 19 " 1 5/8 " 2 1/8 " 192 lbs $7,635.00
                  CTD 20M2
                  Non-potable 500,000 Btuh 43 " 30 " 19 " 2 1/8 " 2 5/8 " 240 lbs $9,555.00
                    CTD 24M2
                    Non-potable 600,000 Btuh 44 " 36 " 19 " 2 5/8 " 3 1/8 " 288 lbs $11,700.00
                      CTD 36M2
                      Non-potable 900,000 Btuh 44 " 54 " 19 " 2 5/8 " 3 1/8 " 432 lbs $15,350.00
                        CUY 10M5
                        Potable 200,000 Btuh 52 " 6 " 34 " 1 1/8 " 1 1/8 " 150 lbs $4,230.00
                          CUY 15M5
                          Potable 300,000 Btuh 52 " 9 " 34 " 1 1/8 " 1 1/8 " 225 lbs $6,150.00
                            CUY 20M5
                            Potable 400,000 Btuh 52 " 12 " 34 " 1 1/8 " 1 1/8 " 300 lbs $8,145.00
                              CUY 25M5
                              Potable 500,000 Btuh 52 " 15 " 34 " 1 3/8 " 1 3/8 " 375 lbs $9,740.00
                                CUY 30M5
                                Potable 600,000 Btuh 52 " 18 " 34 " 1 3/8 " 1 3/8 " 450 lbs $11,425.00
                                  CUY 35M5
                                  Potable 700,000 Btuh 53 " 21 " 34 " 1 5/8 " 1 5/8 " 525 lbs $13,145.00
                                    CUY 40M5
                                    Potable 800,000 Btuh 53 " 24 " 34 " 2 1/8 " 2 1/8 " 600 lbs $14,935.00
                                      CUY 45M5
                                      Potable 900,000 Btuh 53 " 27 " 34 " 2 1/8 " 2 1/8 " 675 lbs $16,580.00
                                        CUY 50M5
                                        Potable 1,000,000 Btuh 53 " 30 " 34 " 2 1/8 " 2 1/8 " 750 lbs $18,220.00
