Compact High-Efficiency Heat Transfer Systems

Doucette Continues to Transform the Heat Exchanger Industry

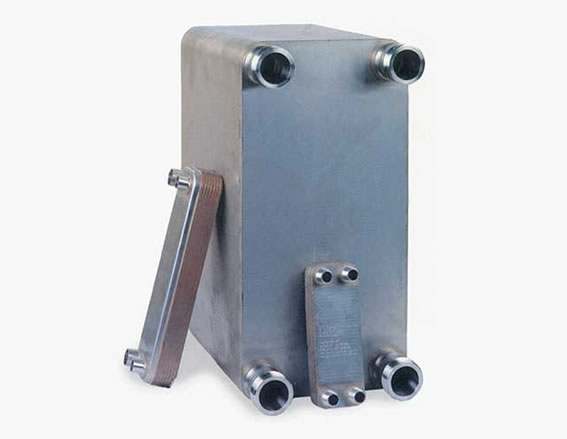

The compact size, low refrigerant charge, and superior heat transfer characteristics of Doucette's Brazed Plate Heat Exchangers make them ideal for evaporator, condenser and sub-cooler applications. Available for virtually any duty, the Brazed Plate Heat Exchangers are available with copper or nickel brazing materials. Standard units have 316 Stainless Steel plates with copper brazing and sweat connections. U.L. listed for 650 psig DWP.
Unit of Measure

Technical Specs

Brands

 N/A Doucette Industries, Inc.

TR

 N/A 40 ton

Refrigerant Inlet Connection

 N/A 1-3/8 in

Refrigerant Outlet Connection

 N/A 2-1/8 in

Water Connection Size

 N/A 2 in

Width

 N/A 7.5 in

Height

 N/A 24.5 in

Depth

 N/A 13.9 in

Weight

 N/A 117 lb

Additional Information

N/A Evaporator models above a certain number of plates include internal refrigerant distribution features, assuring proper distribution of refrigerant gas for maximum efficiency and proper superheat.

Note

N/A Includes internal distributor
Rating Basis: 12,000 Btuh per ton, Water 54/44F, R-410A at 35F ET, 6F superheat, Water PD < 10 psi
