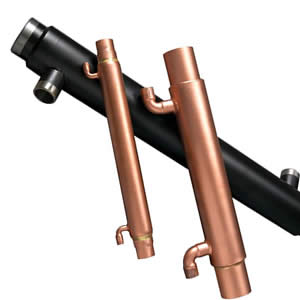

Suction Line Heat Exchangers

For enhanced evaporator capacity, system stability, compressor protection and oil return.

>Nominal SLHE selections should be based on system horsepower, which will provide a nominal 10ºF subcooling and a nominal 20ºF suction superheat for R-22, R-502, R-404A, R-507, R-407A, R-504, R-134A, R-407C and R-410A at 110ºF condensing and 25ºF suction. For example, for a 1-1/2 HP system, select an SLHE 1-1/2. Do not select undersized models to avoid high suction pressure drops and gas whistling.

Selections based on suction and liquid line sizes are appropriate for standard low, medium and high temperature refrigeration systems provided the system HP rating closely matches the SLHE selection.

Selection of oversized models will provide additional liquid subcooling and suction superheat. Oversized models are acceptable only if the suction gas temperature to the compressor is not raised above 65ºF for proper compressor performance.

Standard and custom models can be selected by Doucette to meet any performance criteria, up to 60ºF subcooling. For exacting subcooling and superheat performance please contact the factory.

View Suction Line Heat Exchanger brochure

View SLHE Technical Exchange brochure

Need Help Deciding What You Need?

We would be happy to have a conversation with you about what fits your specific needs.

Start a Conversation Now

Or call John at 800.445.7511

Click Item Number to View Full Product Sheets
Item # HP Gas Conn Liquid Conn Length DWP Weight List Price
    SLHE 1
    1 5/8 " 3/8 " 13 3/4 " 700 psig 2 lbs $50.00
      SLHE 1 1/2
      1 1/2 7/8 " 3/8 " 14 1/2 " 700 psig 3 lbs $64.00
        SLHE 2
        2 1 1/8 " 3/8 " 15 " 400 psig 3 lbs $79.00
          SLHE 1/2
          1/2 1/2 " 1/4 " 11 1/2 " 500 psig 1 lbs $44.00
            SLHE 3/4
            3/4 5/8 " 3/8 " 11 3/4 " 500 psig 2 lbs $46.00
              SLHE 3
              3 1 1/8 " 1/2 " 15 " 700 psig 3 lbs $83.00
                SLHE 5
                5 1 3/8 " 5/8 " 14 1/4 " 633 psig 4 lbs $143.00
                  SLHE 7 1/2
                  7 1/2 1 5/8 " 5/8 " 17 " 633 psig 4 lbs $159.00
                    SLHE 10
                    10 2 1/8 " 7/8 " 18 " 400 psig 8 lbs $239.00
                      SLHE 15
                      15 2 1/8 " 7/8 " 25 " 400 psig 12 lbs $355.00
                        SLHE 20
                        20 2 1/8 " 1 1/8 " 27 " 400 psig 13 lbs $382.00
                          SLHE 20 HP
                          20 2 1/8 " 1 1/8 " 30 7/8 " 700 psig 15 lbs $495.00
                            SLHE 25
                            25 2 5/8 " 1 1/8 " 28 7/8 " 450 psig 15 lbs $516.00
                              SLHE 30/35
                              30 2 5/8 " 1 3/8 " 28 7/8 " 450 psig 16 lbs $560.00
                                SLHE 40
                                40 3 1/8 " 1 3/8 " 28 7/8 " 450 psig 20 lbs $698.00
                                  SLHE 50
                                  50 3 1/8 " 1 5/8 " 28 7/8 " 450 psig 20 lbs $747.00
                                    SLHE 60
                                    60 4 1/8 " 1 5/8 " 29 7/8 " 450 psig 44 lbs $1,000.00
                                      SLHE 75/80
                                      75 4 1/8 " 2 1/8 " 29 7/8 " 450 psig 45 lbs $1,036.00
                                        SLHE 100/125
                                        100 5 1/8 " 2 1/8 " 30 7/8 " 360 psig 54 lbs $1,329.00
                                          SLHE 150
                                          150 6 1/8 " 2 5/8 " 30 7/8 " 360 psig 55 lbs $1,375.00
