For Industrial, Commercial and Residential Applications.

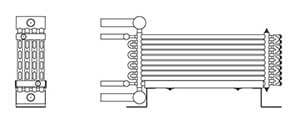

The Hydronic Series is a liquid-to-liquid heat exchanger designed for highly efficient heat transfer covering a wide variety of liquid types. The heavy duty design makes it ideal for demanding commercial, industrial and residential applications where high performance and low maintenance are important.

Heat transfer coefficients are greater than conventional shell and tube or plate exchangers because of the enhanced heat exchange surface and counter-flow design. Unlike plate heat exchangers, the Hydronic Series is not sensitive to debris clogging because of its large fluid circuits and is mechanically cleanable on the tube side circuit.
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Heat Transfer

Hot Connection Size

Cold Connection Size

N/A 100,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 100,000 Btu/hr N/A 1-1/8 in N/A 1-3/8 in
N/A 150,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 150,000 Btu/hr N/A 1-3/8 in N/A 1-5/8 in
N/A 200,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 200,000 Btu/hr N/A 1-5/8 in N/A 1-5/8 in
N/A 250,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 250,000 Btu/hr N/A 1-5/8 in N/A 2-1/8 in
N/A 300,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 300,000 Btu/hr N/A 1-5/8 in N/A 2-1/8 in
N/A 400,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 400,000 Btu/hr N/A 1-5/8 in N/A 2-1/8 in
N/A 500,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 500,000 Btu/hr N/A 2-1/8 in N/A 2-5/8 in
N/A 600,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 600,000 Btu/hr N/A 2-5/8 in N/A 3-1/8 in
N/A 900,000 British Thermal Units per Hour (Btu/hr) Non-Potable Liquid to Liquid Heat Exchanger N/A 900,000 Btu/hr N/A 2-5/8 in N/A 3-1/8 in
N/A 200,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 200,000 Btu/hr N/A 1-1/8 in N/A 1-1/8 in
N/A 300,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 300,000 Btu/hr N/A 1-1/8 in N/A 1-1/8 in
N/A 400,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 400,000 Btu/hr N/A 1-1/8 in N/A 1-1/8 in
N/A 500,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 500,000 Btu/hr N/A 1-3/8 in N/A 1-3/8 in
N/A 600,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 600,000 Btu/hr N/A 1-3/8 in N/A 1-3/8 in
N/A 700,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 700,000 Btu/hr N/A 1-5/8 in N/A 1-5/8 in
N/A 800,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 800,000 Btu/hr N/A 2-1/8 in N/A 2-1/8 in
N/A 900,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 900,000 Btu/hr N/A 2-1/8 in N/A 2-1/8 in
N/A 1,000,000 British Thermal Units per Hour (Btu/hr) Potable Liquid to Liquid Heat Exchanger N/A 1,000,000 Btu/hr N/A 2-1/8 in N/A 2-1/8 in
